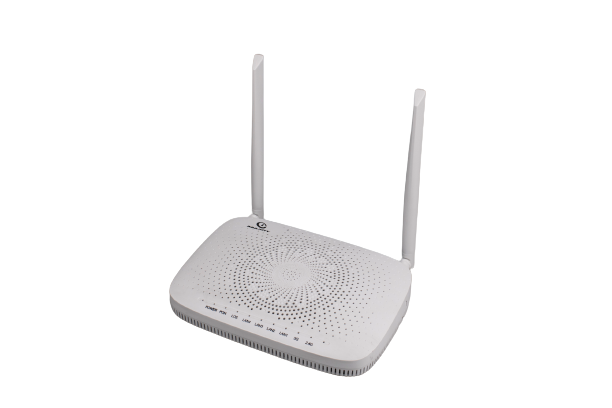

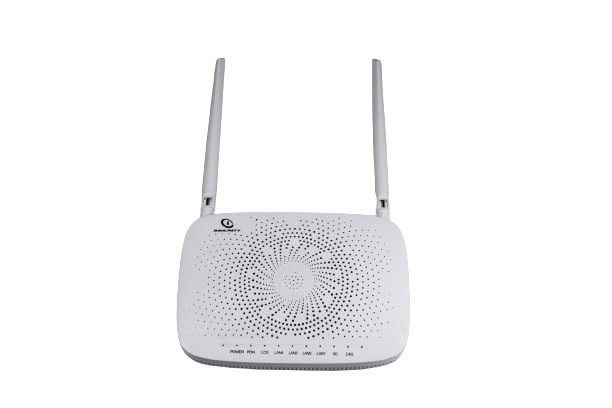

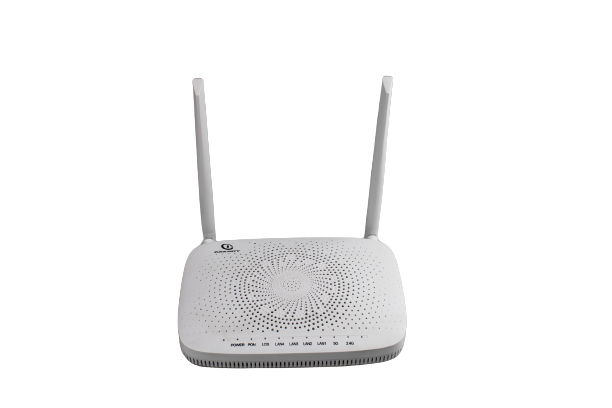

Immunity Lotus XP 1241D
Wireless VoIP XPON Router
- Superfast Dual Band Wi-Fi: Up to 1.2Gbps Wi-Fi speed, 300Mbps 2.4GHz, 867Mbps 5GHz
- Full Gigabit Port: Up to 10x faster than standard Ethernet, deliver lightning-fast wired performance
- Supports VOIP Calls: Simply make or receive phone calls over the Internet
- Easy Remote Management: Supports the ONT Management and Control Interface (OMCI), easy to configure and manage remotely from an OLT
- Smooth Connection: Supports VLAN, smooth network connection for IPTV and other services
Superfast Dual Band Wi-Fi
Immunity Lotus XP2012 comes with 11ac Wi-Fi standard, offering total data transfer speeds achieving up to 1167Mbps, with 867Mbps over the clearer 5GHz channel, and 300Mbps over the 2.4GHz Channel.
Gigabit Internet Access

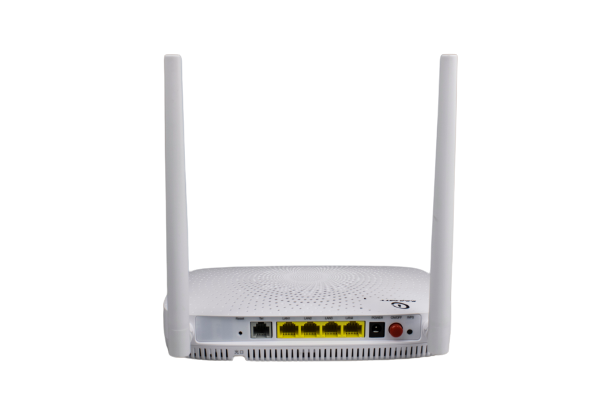

With four gigabit LAN ports, speeds can be up to 10? faster than standard Ethernet connections. The Immunity Lotus XP2012 can provide robust and extremely fast connections to all of your wired devices, including game consoles, smart TVs, DVRs, and more.
Supports VoIP Calls
With 2 FXS ports, users can make or receive phone calls over the Internet simply by connecting the device to their existing telephone set.
USB 2.0 port
Supports easily storage sharing, FTP and media servers as well as 3G/4G dongle.
All-in-One Device
With an XPON modem, 1200 Mbps wireless AP and 4-port Switch, the Immunity Lotus XP2012 is everything your home or office needs to be fully connected.
Ease of Use
Supports OMCI and TR-069, which make it easy to activate, configure and manage remotely.
Specification
- Wireless StandardsIEEE 802.11ac/n/a
- PON Port Quantity1
- FXSYes
- Chipset PON (BOSA)RTL8290B
- Chipset Wireless (2.4 G and 5 G)RTL8192FR-CG
- Wi-Fi Band2.4 GHz and 5 GHz
- Antenna2*2 MU-MIMO Omni Directional Antenna
- Flash256 MB
- RAM256 MB
- WAN TypeDynamic IP/Static IP/PPPoE
- PON Connector TypeSC-APC/UPC
- EPON SupportYes
- GPON SupportYes
- Signal Rate5 GHz: 867 Mbps, 2.4 GHz: 300 Mbps
- Interface1 x SC/APC OR UPC PON Port, 4 x 10/100/1000Mbps LAN Port
- VOIPYes
- Wireless SecurityWEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption
- IPV4/IPV6 Dual Stack SupportYes
- Power supplyDC 12V 1A
- EnvironmentOperating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90%
